设备部署-NIDS入侵检测系统-Snort&Suricata

IDS是什么

IDS分两类，一种是NIDS（NetWork Instruction Detection System），一种是HIDS（Host Instruction Detection System）

1. 基于主机的入侵检测系统（HIDS）–该系统将检查网络中计算机上的事件
2. 基于网络的入侵检测系统（NIDS）–该系统将检查您网络上的流量恶意问题。

本篇就来介绍两个开源的NIDS系统：Snort和Suricata

Snort

一个开源的网络入侵检测系统（IDS）和入侵防御系统（IPS），它可以捕获通讯流量并对其做协议解析，识别或防御通讯流量中可疑或恶意的行为。

国内大部分厂商基于流量的IDS的数据包捕获、协议解析、检测引擎等关键模块都是在此基础上做修改和扩展优化。

官网地址：

Snort - Network Intrusion Detection & Prevention System

Snort3环境搭建

sudo apt-get update && sudo apt-get dist-upgrade -y
sudo apt-get install -y libpcap-dev libpcre3-dev libdumbnet-dev zlib1g-dev
sudo apt-get install -y build-essential autotools-dev libdumbnet-dev libluajit-5.1-dev libpcap-dev zlib1g-dev pkg-config libhwloc-dev cmake liblzma-dev openssl libssl-dev cpputest libsqlite3-dev libtool uuid-dev git autoconf bison flex libcmocka-dev libnetfilter-queue-dev libunwind-dev libmnl-dev ethtool

sudo dpkg-reconfigure tzdata

mkdir ~/snort_src
cd ~/snort_src

cd ~/snort_src
wget https://github.com/rurban/safeclib/releases/download/v02092020/libsafec-02092020.tar.gz
tar -xzvf libsafec-02092020.tar.gz
cd libsafec-02092020.0-g6d921f
./configure
make
sudo make install

安装Hyperscan

Snort 3使用Hyperscan进行快速模式匹配。可以从Ubuntu存储库安装一个旧版本的Hyperscan，但是Hyperscan对Snort的操作和性能至关重要，最好编译Hyperscan的最新稳定版本。Hyperscan有一个需求数量，包括PCRE、gper工具、ragel和Boost库。

cd ~/snort_src/
wget https://nchc.dl.sourceforge.net/project/pcre/pcre/8.45/pcre-8.45.tar.gz
tar -xzvf pcre-8.45.tar.gz
cd pcre-8.45
./configure
make
sudo make install

cd ~/snort_src
wget https://github.com/gperftools/gperftools/releases/download/gperftools-2.9.1/gperftools-2.9.1.tar.gz
tar -xzvf gperftools-2.9.1.tar.gz
cd gperftools-2.9.1
./configure
make
sudo make install

cd ~/snort_src
wget http://www.colm.net/files/ragel/ragel-6.10.tar.gz
tar -xzvf ragel-6.10.tar.gz
cd ragel-6.10
./configure
make
sudo make install

cd ~/snort_src
wget https://boostorg.jfrog.io/artifactory/main/release/1.78.0/source/boost_1_78_0.tar.gz
tar -xvzf boost_1_78_0.tar.gz

cd ~/snort_src
wget https://github.com/intel/hyperscan/archive/refs/tags/v5.4.0.tar.gz
tar -xvzf v5.4.0.tar.gz
mkdir ~/snort_src/hyperscan-5.4.0-build
cd hyperscan-5.4.0-build/
cmake -DCMAKE_INSTALL_PREFIX=/usr/local -DBOOST_ROOT=~/snort_src/boost_1_78_0/ ../hyperscan-5.4.0
make
sudo make install

安装flatbuffers

cd ~/snort_src
wget https://github.com/google/flatbuffers/archive/refs/tags/v2.0.0.tar.gz -O flatbuffers-v2.0.0.tar.gz
tar -xzvf flatbuffers-v2.0.0.tar.gz
mkdir flatbuffers-build
cd flatbuffers-build
cmake ../flatbuffers-2.0.0
make
sudo make install

安装DAQ

安装数据采集库（DAQ），Snort3使用的数据采集卡与Snort 2.9.0系列不同

cd ~/snort_src
# 可以根据自身下载最新的库
wget https://github.com/snort3/libdaq/archive/refs/tags/v3.0.5.tar.gz
tar -xzvf v3.0.5.tar.gz
cd libdaq-3.0.5
./bootstrap
./configure
make
sudo make install

sudo ldconfig

最后源码安装Snort 3

如果对启用其他编译时功能感兴趣，例如处理大型（超过2GB）PCAP文件的能力，或者新的命令行shell：
运行./configure cmake.sh--帮助列出所有可选功能，并将它们附加到下面的./configure\u cmake.sh命令中。在Snort网站上查看Snort3的更新版本

cd ~/snort_src
wget https://github.com/snort3/snort3/archive/refs/tags/3.1.20.0.tar.gz
tar -xzvf 3.1.20.0.tar.gz
cd snort3-3.1.20.0
./configure_cmake.sh --prefix=/usr/local --enable-tcmalloc
cd build
make
sudo make install

/usr/local/bin/snort -V

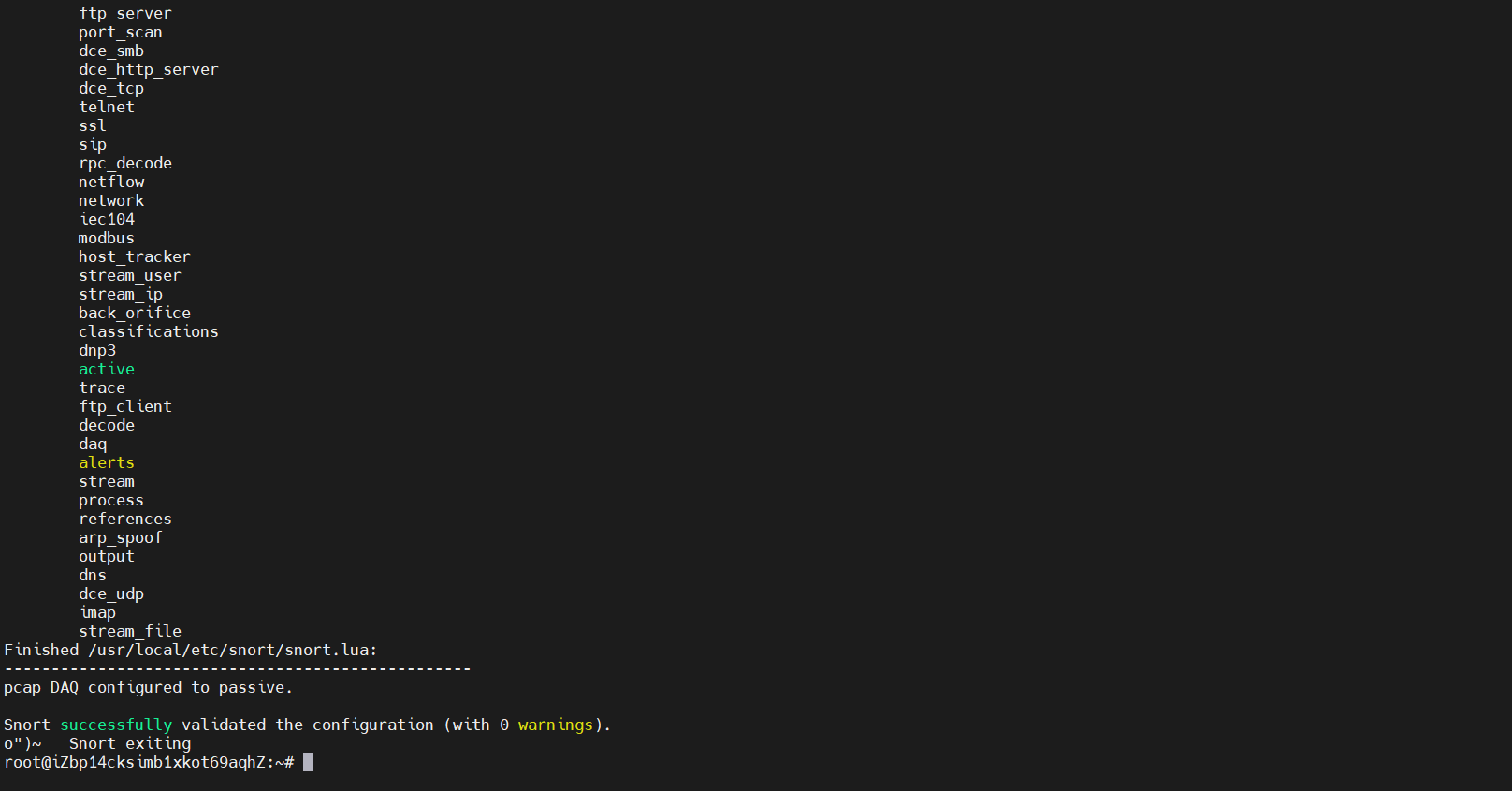

使用默认配置文件测试Snrot

snort -c /usr/local/etc/snort/snort.lua

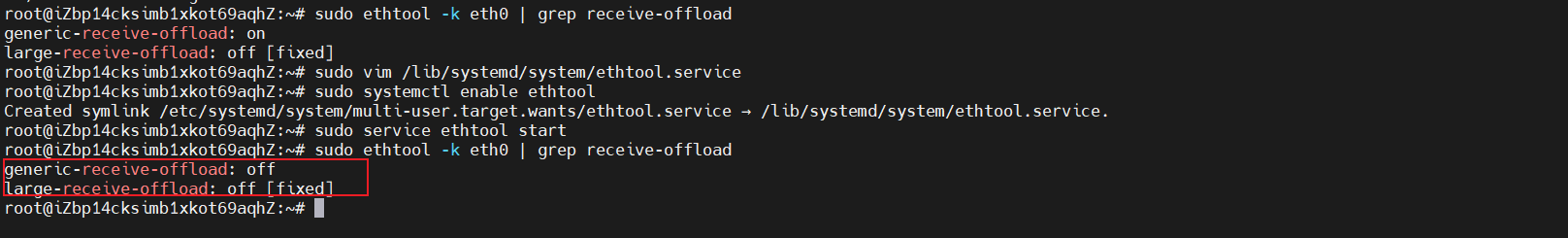

减少IDS的数据包

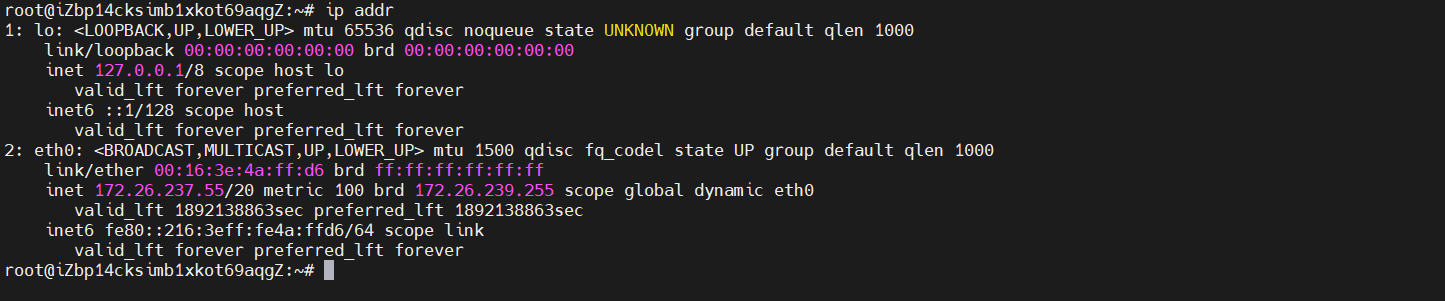

eth0是我要监听的网卡，根据自己的网卡设置

# 检查这些接口的large-receive-o load（LRO）和generic-receive-offload（GRO）的状态，使用ethtool检查状态

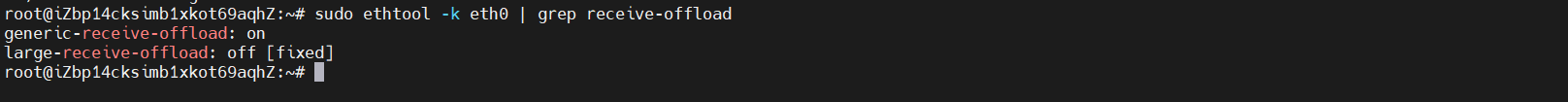

sudo ethtool -k eth0 | grep receive-offload

sudo vi /lib/systemd/system/ethtool.service

##内容，输入以下信息
[Unit]
Description=Ethtool Configration for Network Interface
[Service]
Requires=network.target
Type=oneshot
ExecStart=/sbin/ethtool -K eth0 gro off
ExecStart=/sbin/ethtool -K eth0 lro off
[Install]
WantedBy=multi-user.target

sudo systemctl enable ethtool
sudo service ethtool start

创建一些配置Snort策略的文件夹

sudo mkdir /usr/local/etc/rules
sudo mkdir /usr/local/etc/so_rules/
sudo mkdir /usr/local/etc/lists/
sudo touch /usr/local/etc/rules/local.rules
sudo touch /usr/local/etc/lists/default.blocklist
sudo mkdir /var/log/snort

sudo vim /usr/local/etc/rules/local.rules

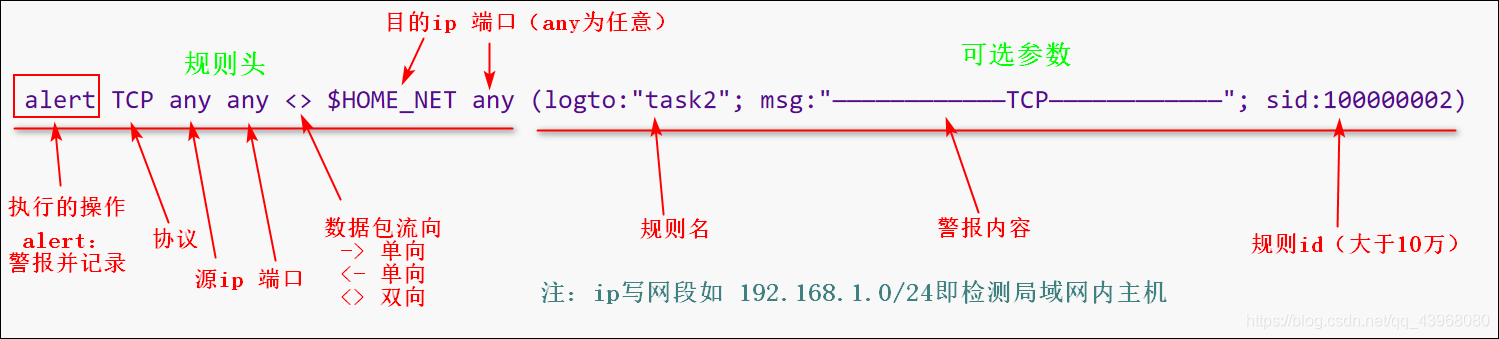

alert icmp any any -> any any (msg:"ICMP Traffic Detected"; sid:10000001;rev:1;)

/usr/local/etc/snort/snort.lua

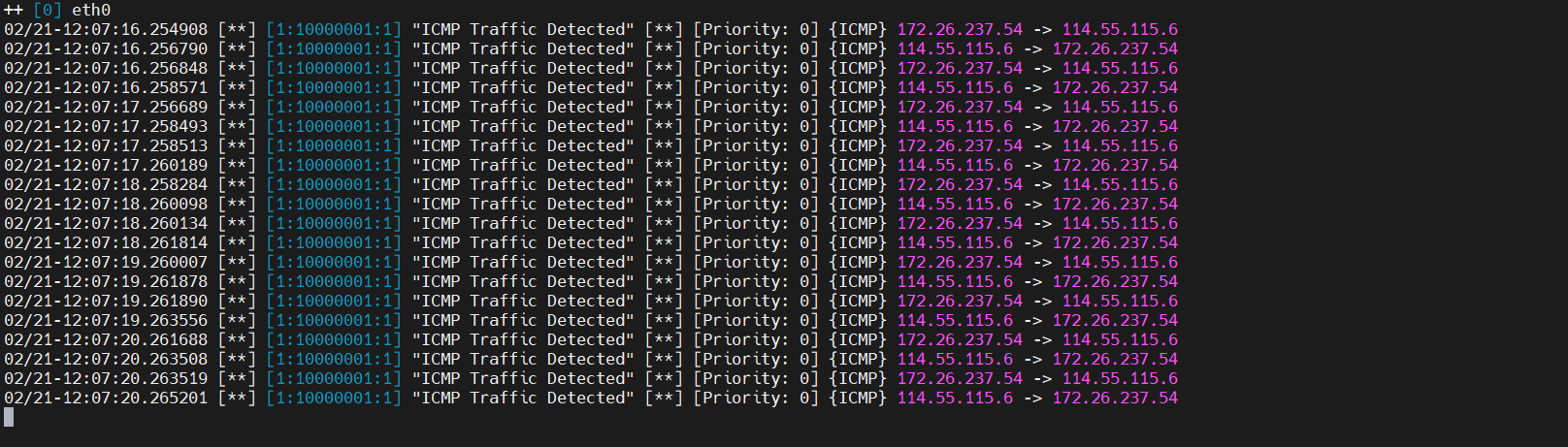

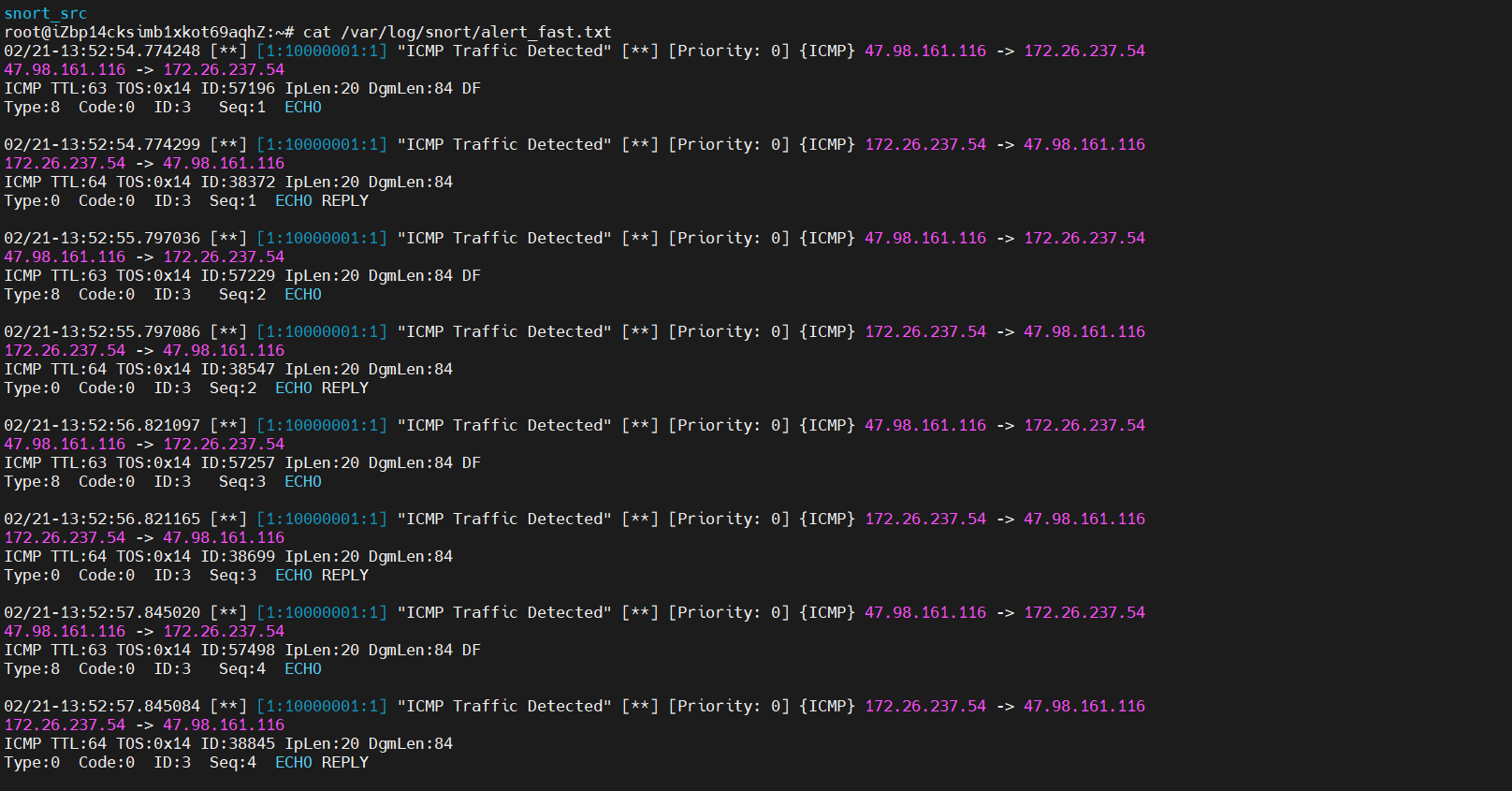

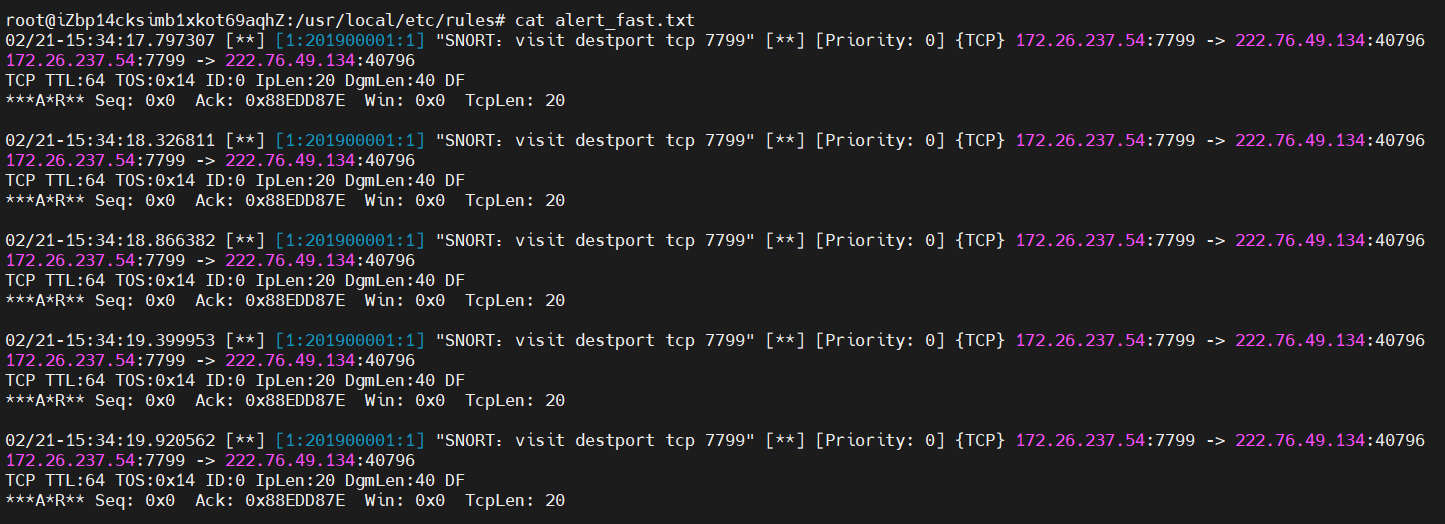

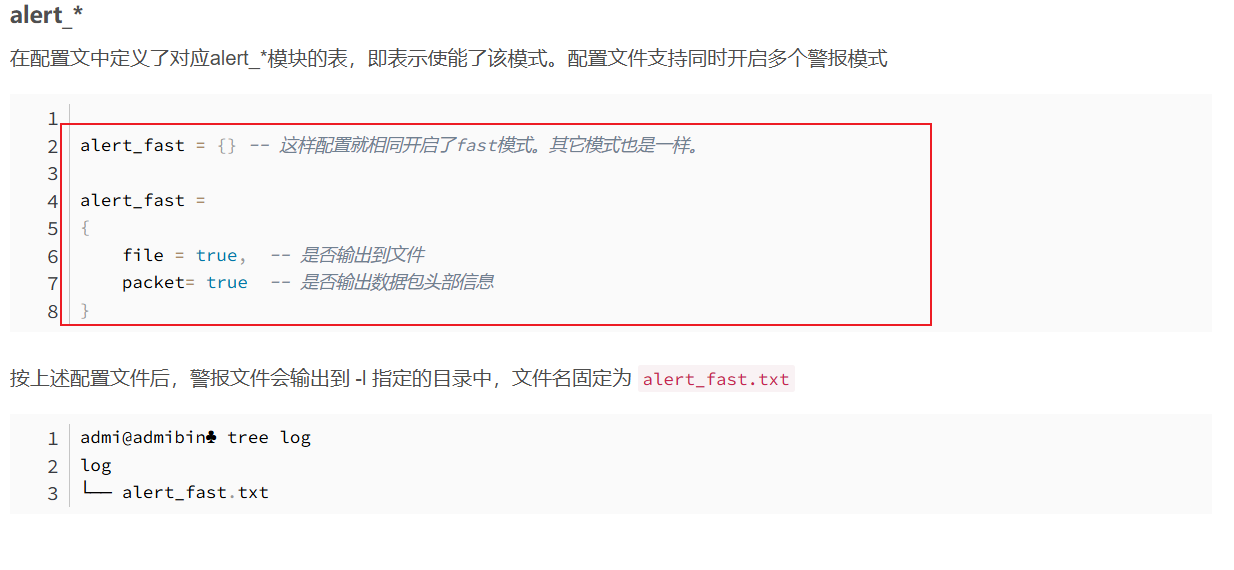

snort -c /usr/local/etc/snort/snort.lua -A alert_fast -i eth0 -l /var/log/snort/ -R /usr/local/etc/rules/local.rules

Snort运行帮助

snort [-options] <filter options>

Options:
        -A
                    设置报警模式
                    Set alert mode: fast, full, console, test or none  (alert file alerts only)
                    "unsock" enables UNIX socket logging (experimental).

        -b
                    以tcpdump格式记录Log包，用该格式速度快
                    Log packets in tcpdump format (much faster!)

        -B <mask>
                    使用CIDR掩码混淆警报和包转储中的IP地址
                    Obfuscated IP addresses in alerts and packet dumps using CIDR mask

        -c <rules>
                    指定snort配置文件所在的路径，如 `snort -c /etc/snort/snort.conf`
                    Use Rules File <rules>

        -C
                    只打印带有字符数据的有效负载(没有十六进制)
                    Print out payloads with character data only (no hex)

        -d
                    显示应用层数据
                    Dump the Application Layer

        -D
                    在后台(守护进程)模式下运行Snort
                    Run Snort in background (daemon) mode

        -e
                    显示数据链路层头部信息
                    Display the second layer header info

        -f
                    在二进制日志写之后，不进行fflush()调用
                    Turn off fflush() calls after binary log writes

        -F <bpf>
                    读取伯克利包过滤器文件
                    Read BPF filters from file <bpf>

        -g <gname>
                    指定运行snort的组
                    Run snort gid as <gname> group (or gid) after initialization

        -G <0xid>

                    Log Identifier (to uniquely id events for multiple snorts)

        -h <hn>
                    指定snort.conf里面定义的变量HOME_NET的值。对于-l -B一起使用且运行模式为IDS时，不能更改HONE_NET
                    Set home network = <hn>
                   (for use with -l or -B, does NOT change $HOME_NET in IDS mode)

        -H

                    Make hash tables deterministic.

        -i <if>
                    监听<if>指定的网络接口
                    Listen on interface <if>

        -I
                    将网络接口名添加到警报输出中
                    Add Interface name to alert output

        -k <mode>
                    检验模式
                    Checksum mode (all,noip,notcp,noudp,noicmp,none)

        -K <mode>
                    日志模式
                    Logging mode (pcap[default],ascii,none)

        -l <ld>
                    指定日志存储的目录
                    Log to directory <ld>

        -L <file>
                    记录日志到指定的文件中
                    Log to this tcpdump file

        -M
                    将消息记录到syslog，不包含警报消息
                    Log messages to syslog (not alerts)

        -m <umask>

                    Set umask = <umask>

        -n <cnt>
                    接收到<cnt>指定的包数后退出snort
                    Exit after receiving <cnt> packets

        -N
                    关闭日志记录（报警仍然会记录）
                    Turn off logging (alerts still work)

        -O
                    混淆已记录的IP地址
                    Obfuscate the logged IP addresses

        -p
                    禁用混杂模式嗅探
                    Disable promiscuous mode sniffing

        -P <snap>
                    设置snort的抓包截断长度，默认为1514
                    Set explicit snaplen of packet (default: 1514)

        -q
                    退出程序时，屏幕不显示初始化信息和最后的汇总统计信息
                    Quiet. Don't show banner and status report

        -Q
                        以内联模式运行
                        Enable inline mode operation.

        -r <tf>
                    读取并处理指定的tcpdump文件(snort的二进制日志文件)
                    Read and process tcpdump file <tf>

        -R <id>

                    Include 'id' in snort_intf<id>.pid file name

        -s
                    将警报消息记录到syslog
                    Log alert messages to syslog

        -S <n=v>
                    设置规则文件的变量n的值为v
                    Set rules file variable n equal to value v

        -t <dir>

                    Chroots process to <dir> after initialization

        -T
                    测试并报告当前Snort的配置是否有问题
                    Test and report on the current Snort configuration

        -u <uname>
                    初始化后以<uname>用户的身份运行snort
                    Run snort uid as <uname> user (or uid) after initialization

        -U
                    使用UTC作为时间戳
                    Use UTC for timestamps

        -v
                    终端显示打印
                    Be verbose

        -V
                    显示snort版本
                    Show version number

        -X
                    从链路层开始存储原始数据包数据
                    Dump the raw packet data starting at the link layer

        -x
                    如果Snort出现配置问题，则退出
                    Exit if Snort configuration problems occur

        -y
                    在警报和日志文件中包含年份时间戳
                    Include year in timestamp in the alert and log files

        -Z <file>
                    设置预处理器文件路径和名称
                    Set the performonitor preprocessor file path and name

        -?
                    显示snort详细用法
                    Show this information


<Filter Options> are standard BPF options, as seen in TCPDump
Longname options and their corresponding single char version
           --logid <0xid>
                       Same as -G

       --perfmon-file <file>
                       Same as -Z

       --pid-path <dir>
                       Specify the directory for the Snort PID file

       --snaplen <snap>
                       Same as -P

       --help
                       Same as -?

       --version
                       Same as -V

       --alert-before-pass
                       Process alert, drop, sdrop, or reject before pass, default is pass before alert, drop,...

       --treat-drop-as-alert
                    在启动期间将drop、sdrop和reject规则转换为警报规则
                       Converts drop, sdrop, and reject rules into alert rules during startup

       --treat-drop-as-ignore
                       Use drop, sdrop, and reject rules to ignore session traffic when not inline.

       --process-all-events
                       Process all queued events (drop, alert,...), default stops after 1st action group

       --enable-inline-test
                       Enable Inline-Test Mode Operation

       --dynamic-engine-lib <file>
                       加载指定动态检测引擎
                       Load a dynamic detection engine

       --dynamic-engine-lib-dir <path>
                       从指定目录中加载所有动态引擎
                       Load all dynamic engines from directory

       --dynamic-detection-lib <file>
                       加载指定动态规则库
                       Load a dynamic rules library

       --dynamic-detection-lib-dir <path>
                       从指定目录中加载所有动态规则库
                       Load all dynamic rules libraries from directory

       --dump-dynamic-rules <path>
                       Creates stub rule files of all loaded rules libraries

       --dynamic-preprocessor-lib <file>
                       加载指定动态预处理器库
                       Load a dynamic preprocessor library

       --dynamic-preprocessor-lib-dir <path>
                       从指定目录中加载所有动态预处理器库
                       Load all dynamic preprocessor libraries from directory

       --dynamic-output-lib <file>
                       加载指定动态输出库
                       Load a dynamic output library

       --dynamic-output-lib-dir <path>
                       从指定目录中加载所有动态输出库
                       Load all dynamic output libraries from directory

       --create-pidfile
                       Create PID file, even when not in Daemon mode

       --nolock-pidfile
                       Do not try to lock Snort PID file

       --no-interface-pidfile
                       Do not include the interface name in Snort PID file

       --disable-attribute-reload-thread
                       不创建一个线程来重新加载属性表
                       Do not create a thread to reload the attribute table

       --pcap-single <tf>
                       Same as -r.

       --pcap-file <file>
                       指定要读取的pcaps文件名称
                       file that contains a list of pcaps to read - read mode is implied.

       --pcap-list "<list>"
                       指定要读取的pcaps文件列表，通过空格分隔
                       a space separated list of pcaps to read - read mode is implied.

       --pcap-dir <dir>
                       递归查找pcaps的目录，即指定目录，该目录下的pcaps文件都将被读取
                       a directory to recurse to look for pcaps - read mode is implied.

       --pcap-filter <filter>
                       filter to apply when getting pcaps from file or directory.

       --pcap-no-filter
                       reset to use no filter when getting pcaps from file or directory.

       --pcap-loop <count>
                       this option will read the pcaps specified on command line continuously.
                    for <count> times.  A value of 0 will read until Snort is terminated.

       --pcap-reset
                       if reading multiple pcaps, reset snort to post-configuration state before reading next pcap.

       --pcap-reload
                       if reading multiple pcaps, reload snort config between pcaps.

       --pcap-show
                       print a line saying what pcap is currently being read.

       --exit-check <count>
                       Signal termination after <count> callbacks from DAQ_Acquire(), showing the time it
                    takes from signaling until DAQ_Stop() is called.

       --conf-error-out
                       Same as -x

       --enable-mpls-multicast
                       Allow multicast MPLS

       --enable-mpls-overlapping-ip
                       Handle overlapping IPs within MPLS clouds

       --max-mpls-labelchain-len
                       Specify the max MPLS label chain

       --mpls-payload-type
                       Specify the protocol (ipv4, ipv6, ethernet) that is encapsulated by MPLS

       --require-rule-sid
                       Require that all snort rules have SID specified.

       --daq <type>
                       选择数据包采集模块(默认为pcap)
                       Select packet acquisition module (default is pcap).

       --daq-mode <mode>
                       选择数据采集(DAQ)操作模式
                       Select the DAQ operating mode.

       --daq-var <name=value>
                       指定额外的DAQ变量
                       Specify extra DAQ configuration variable.

       --daq-dir <dir>
                       指定DAQ库文件路径
                       Tell snort where to find desired DAQ.

       --daq-list[=<dir>]
                       列出可用的数据包采集模块。默认是静态模块。
                       List packet acquisition modules available in dir.  Default is static modules only.

       --dirty-pig
                       关机时不要刷新数据包并释放内存
                       Don't flush packets and release memory on shutdown.

       --cs-dir <dir>
                       Directory to use for control socket.

       --ha-peer
                       Activate live high-availability state sharing with peer.

       --ha-out <file>
                       将高可用性事件写入此文件
                       Write high-availability events to this file.

       --ha-in <file>
                       在启动(warm-start)时从该文件中读取高可用性事件
                       Read high-availability events from this file on startup (warm-start).

       --suppress-config-log
                       Suppress configuration information output.

Snort规则编写

Snort 3 Rule Writing Guide - Snort 3 Rule Writing Guide

Snort的响应机制

1. alert：警报并记录（适用于需要立即采取行动的情况下）
2. pass：忽略（适用于明确允许的流量，不进行检测）
3. log：记录（适用于需要记录流量但不采取其他行动的情况下）
4. activation：报警并启动另一个动态规则链
5. dynamic：由其他activate动作的规则调用，在正常情况下，他们不会被用来检测包。一个动态规则仅能被一个"activate"动作激活。

Snort规则组成

规则头（Rule Header）和规则选项（Rule Options）组成Snort规则

1. 规则头定义了流量匹配的基本信息，如协议、源和目的地址、端口等。
2. 规则选项则包含了更详细的检测条件和响应动作。

规则头

规则头的基本格式如下：<action> <protocol> <src_ip> <src_port> -> <dst_ip> <dst_port>

• action：规则动作，常见的有alert（报警）、log（记录日志）、pass（通过）等。
• protocol：协议类型，如TCP、UDP、ICMP等。
• src_ip：源IP地址，可以是具体的IP，也可以是CIDR表示法的网段，还可以使用any表示任何地址。
• src_port：源端口号，可以是具体端口号，也可以使用any表示任何端口。
• dst_ip：目的IP地址，含义同src_ip。dst_port：目的端口号，含义同src_port。

示例规则头：alert tcp any any -> 192.168.1.0/24 80

当检测到任何源IP和源端口的TCP流量进入192.168.1.0/24网段的80端口时，触发报警

规则选项

规则选项，由一系列键值对组成，使用分号分隔。其格式如下：<key>:<value>

常见的规则选项包括：

• msg：报警信息。
• sid：规则ID，必须唯一。
• rev：规则版本号。
• content：匹配数据包中的内容。
• depth：指定从数据包开始的位置进行匹配。
• offset：指定匹配的起始位置。
• nocase：忽略大小写。
• classtype：分类类型，用于描述规则的性质。

示例规则选项：(msg:"Potential SQL Injection"; sid:1000001; rev:1; content:"' or '1'='1"; nocase;)

这个就是当数据包中出现' or '1'='1的内容时(无论大小写)触发Potential SQL Injection的告警信息，版本号为1

完整示例规则：alert tcp any any -> any 80 (msg:"Potential SQL Injection"; sid:1000001; rev:1; content:"' or '1'='1"; nocase;)

其他示例规则

SQL注入攻击警告：alert tcp any any -> any 80 (msg:"Possible SQL Injection"; content:"' OR 1=1 --"; http_uri; nocase; sid:10000000123; rev:1;)

永恒之蓝特征警告：alert smb any any -> $HOME_NET any (msg:“ET EXPLOIT Possible ETERNALBLUE MS17-010”; flow:to_server,established; content:”|00 00 00 31 ff|SMB|2b 00 00 00 00 18 07 c0|”; depth:16; fast_pattern; content:”|4a 6c 4a 6d 49 68 43 6c 42 73 72 00|”; distance:0; flowbits:set,ETPRO.ETERNALBLUE; flowbits:noalert; classtype:trojan-activity; sid:2024220; rev:1;)

参考文章

Snort规则 - 鱼儿叁 - 博客园

Snort命令行参数详解-CSDN博客

Snort的使用二：入侵检测与规则编写_snort规则的应用-CSDN博客

Ubuntu22.04安装Snort3并进行网络流量异常检测 - Jikefan - 博客园

手写规则检测SQLMAP工具

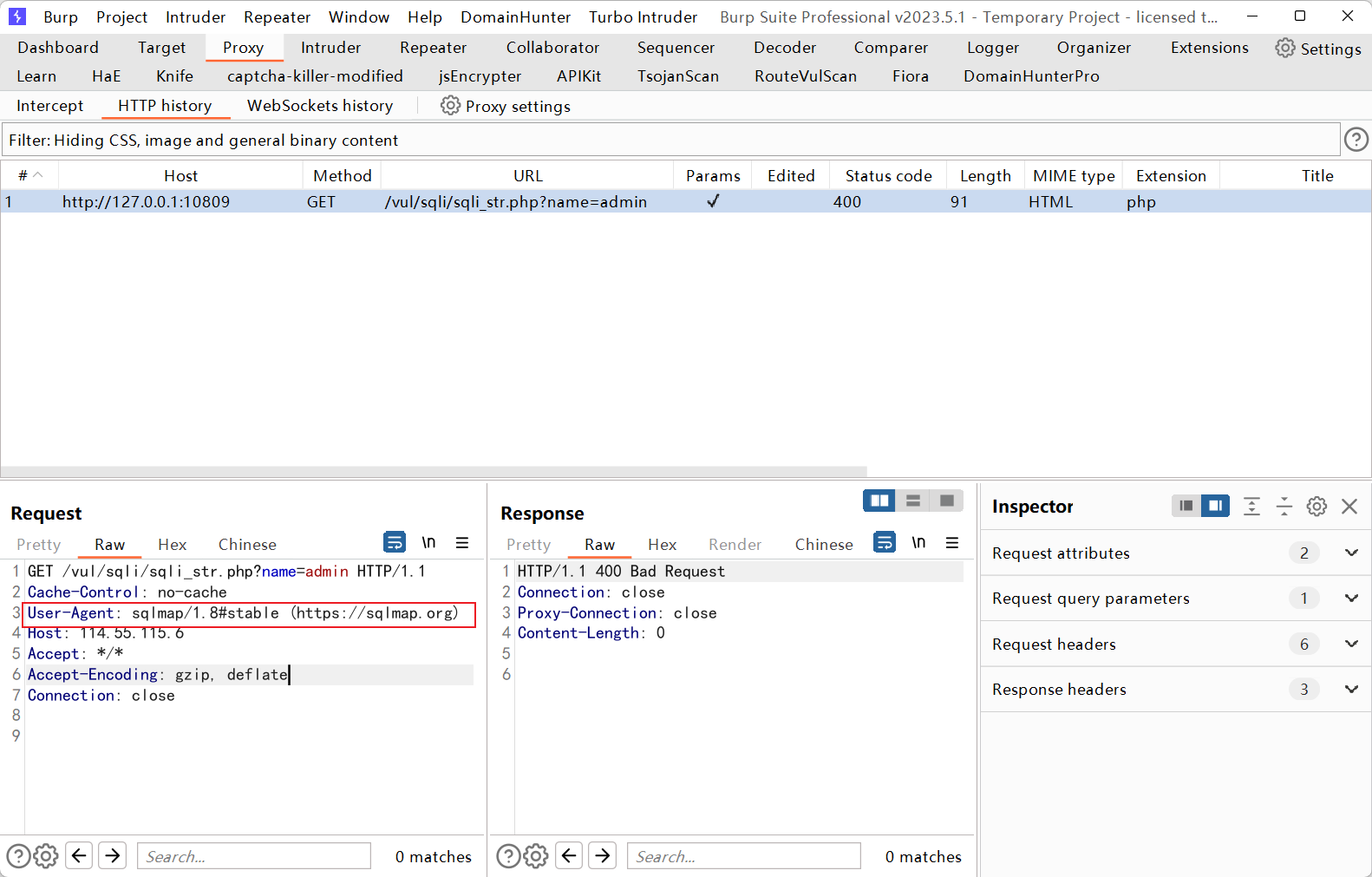

SQLMAP工具流量特征

发现UA存在sqlmap关键字

编写规则

alert tcp $EXTERNAL_NET any -> $HOME_NET [80,443,8080] (
    msg:"SQLi Attack - Potential sqlmap Activity Detected";
    flow:to_server,established;
    content:"User-Agent"; http_header;
    content:"sqlmap", nocase; http_header;
    metadata:service http;
    reference:url,github.com/sqlmapproject/sqlmap;
    classtype:web-application-attack;
    sid:1000001;
    rev:1;
)

特定端口通讯警告

alert tcp any 7799 -> any any (msg:"SNORT：visit destport tcp 7799"; sid:201900001; rev:1;)

Suricata

一个开源的网络入侵检测系统（IDS）和入侵防御系统（IPS），它可以捕获通讯流量并对其做协议解析，识别或防御通讯流量中可疑或恶意的行为。

国内大部分厂商基于流量的IDS的数据包捕获、协议解析、检测引擎等关键模块都是在此基础上做修改和扩展优化。

项目地址

https://github.com/OISF/suricata

操作手册

2. 快速入门指南 — Suricata 7.0.0-dev 文档

环境搭建

sudo apt-get install software-properties-common
sudo add-apt-repository ppa:oisf/suricata-stable
sudo apt-get update
sudo apt-get install suricata

配置

ip addr

sudo vim /etc/suricata/suricata.yaml

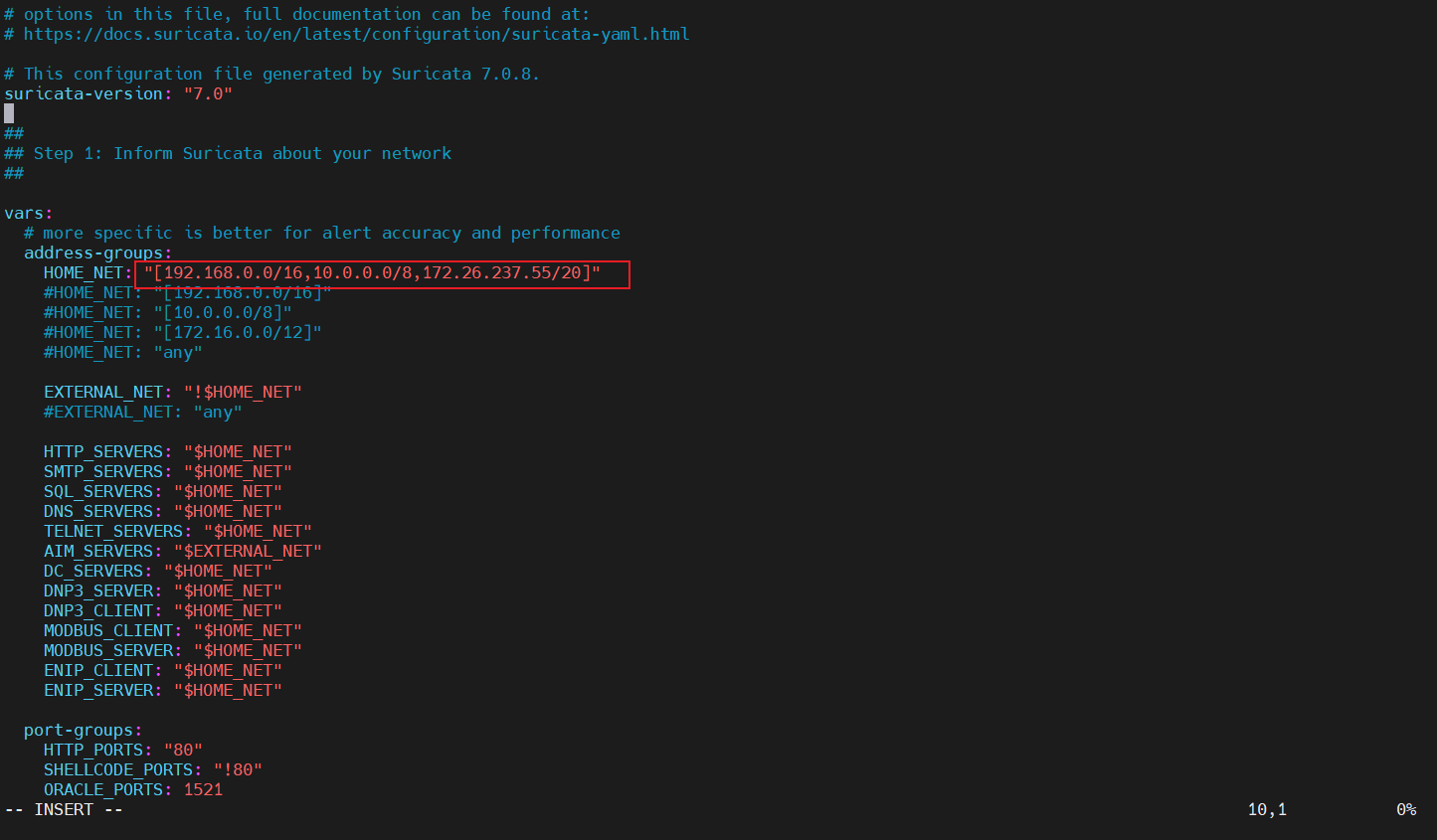

有许多可能的配置选项，我们将重点放在 HOME_NET 变量和网络接口配置。这个 HOME_NET 在大多数情况下，变量应该包括被监视接口的IP地址和正在使用的所有本地网络。默认值已经包括RFC1918网络。

172.26.237.55/20

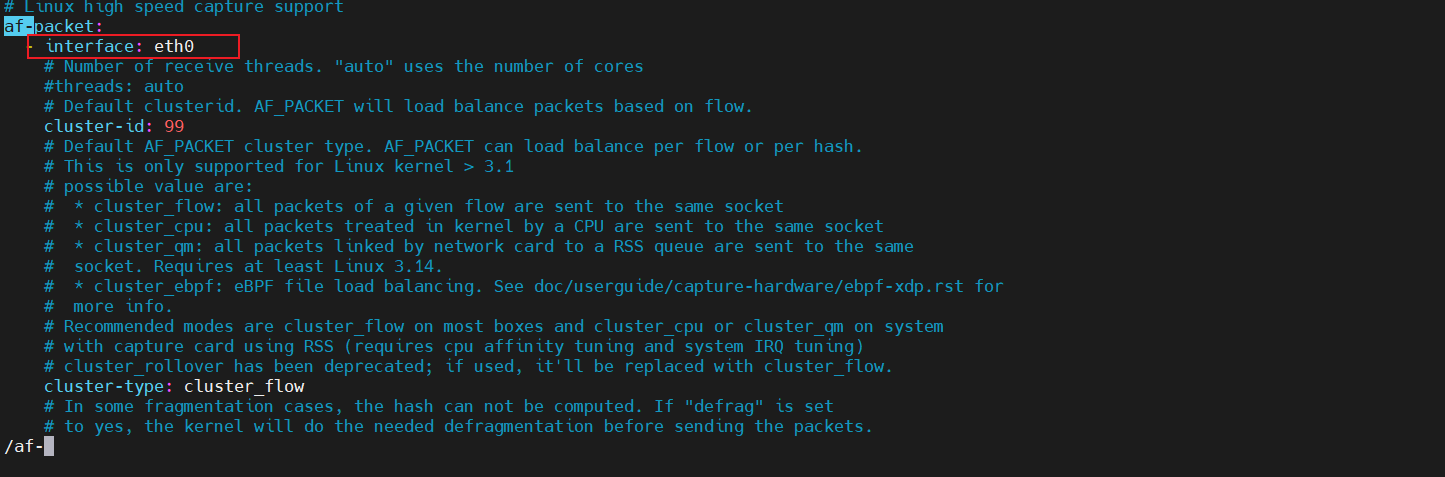

eth0

Suricata规则下载

入侵检测平台

https://github.com/al0ne/suricata-rules

GitHub - ptresearch/AttackDetection: Attack Detection

入侵检测之流量分析--suricata规则库来源梳理

suricata-update

日志文件

• suricata.log：包含 Suricata 运行时的日志信息，如启动、关闭、规则加载等，用于故障排除和监视。
• stats.log：包含 Suricata 的统计信息，如流量统计、规则匹配统计等，，用于性能调优和网络活动分析。
• fast.log：就是告警输出日志了，通常看这个就可以。
• eve.json：详细的事件记录，以 JSON 格式呈现，包括有关规则匹配事件的详细信息，包括协议解析、源和目标地址、端口、负载数据等，用于深入分析

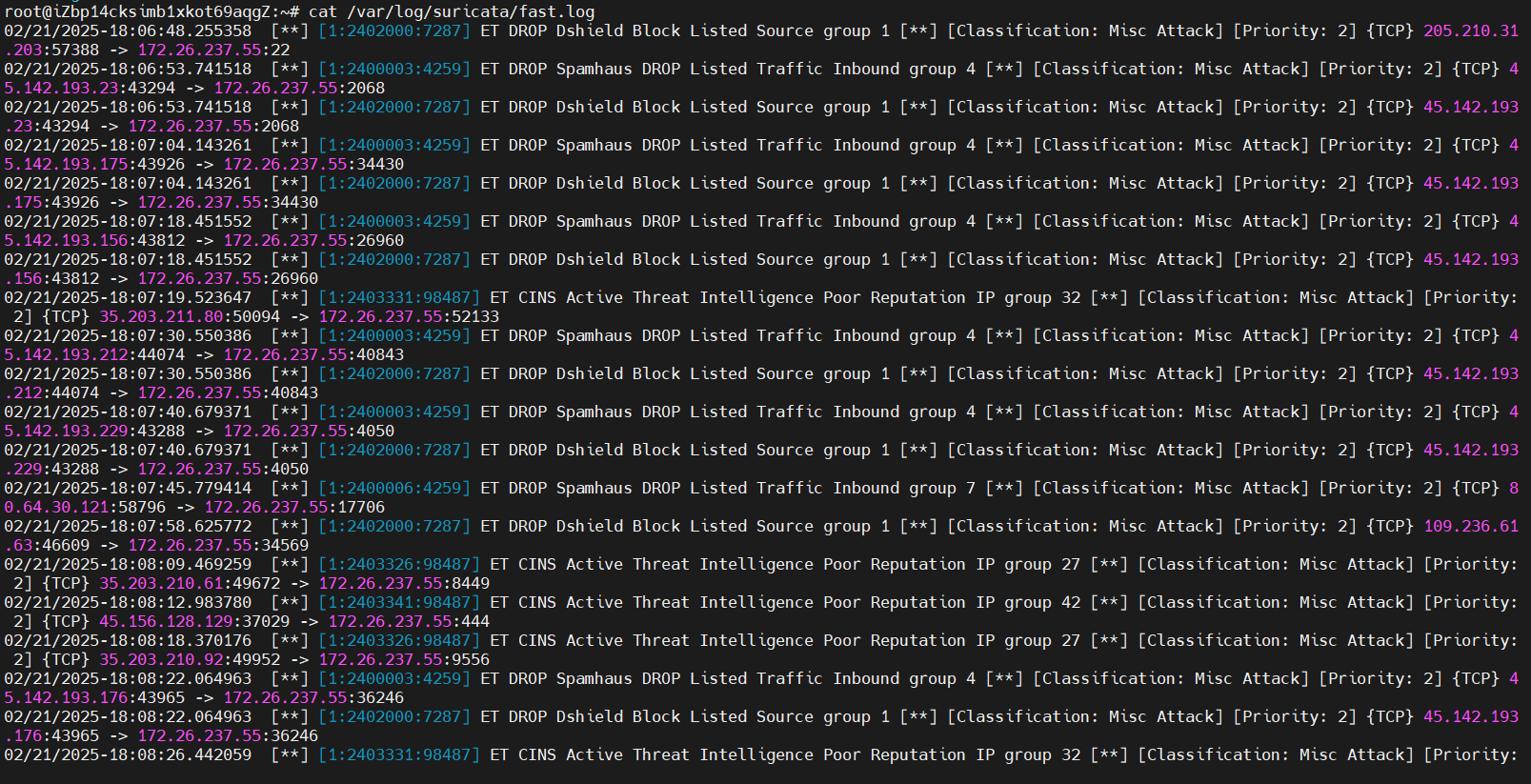

cat /var/log/suricata/fast.log

规则检测

suricata -c /etc/suricata/suricata.yaml -i eth0 -s /etc/suricata/rules/suricata.rules

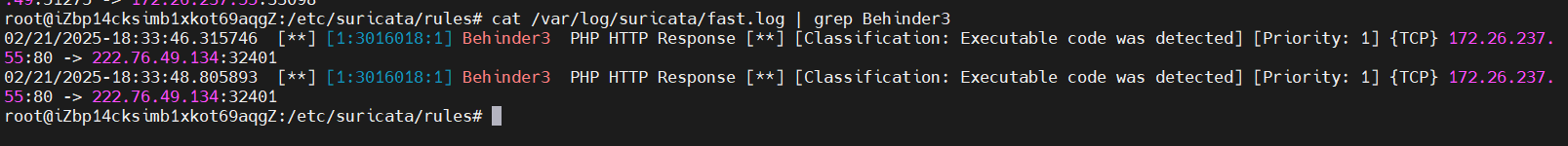

suricata -c /etc/suricata/suricata.yaml -i eth0 -s /etc/suricata/rules/Behinder3.rules

自写规则

安全运营-Suricata规则学习

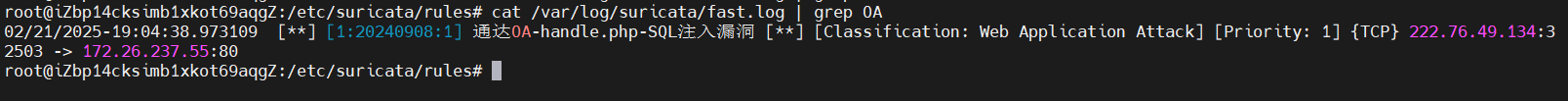

alert http any any -> any any (msg:"通达OA-handle.php-SQL注入漏洞"; content:"share/handle.php"; http_uri; content:"select"; content:"and"; reference:url,http://example.com/2023-15672; classtype:web-application-attack; sid:20240908; rev:1;)

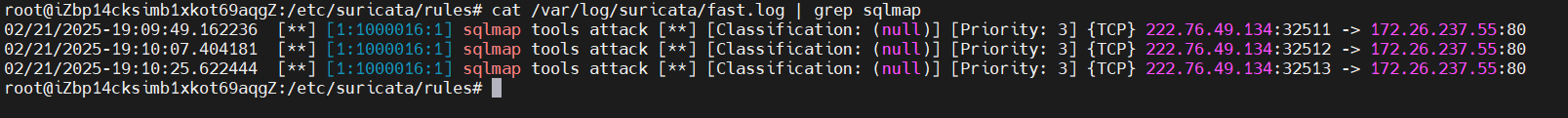

alert http any any -> any any (msg:"sqlmap tools attack"; flow:to_server; content:"User-Agent: sqlmap"; http_header; sid:1000016; rev:1;)

alert tls $EXTERNAL_NET any -> $HOME_NET any (msg:"SSLBL: Malicious SSL certificate detected (CobaltStrike C&C)"; tls.fingerprint:"6e:ce:5e:ce:41:92:68:3d:2d:84:e2:5b:0b:a7:e0:4f:9c:b7:eb:7c"; reference:url, sslbl.abuse.ch/ssl-certificates/sha1/6ece5ece4192683d2d84e25b0ba7e04f9cb7eb7c/; sid:902202003; rev:1;)

alert tls $EXTERNAL_NET any -> $HOME_NET any (msg:"ET HUNTING Suspicious Empty SSL Certificate - Observed in Cobalt Strike"; flow:established,to_client; tls.cert_subject; bsize:25; content:"C=, ST=, L=, O=, OU=, CN="; endswith; fast_pattern; classtype:targeted-activity; sid:2023629; rev:7; metadata:affected_product Any, attack_target Client_Endpoint, created_at 2016_10_24, deployment Perimeter, performance_impact Low, signature_severity Major, updated_at 2024_03_27;)

集成系统镜像-securityonion

集成snort/suricata、bro(zeek)、elk、ossec等

Security Onion Solutions

两者对比

其实按照安装成本和操作的简易程度来说，Suricata相对于Snort3来说更加容易上手，Snort3的安装太过麻烦，建议使用Suricata
